SLAM LiDAR

SLAM LiDAR產品

SLAM LiDAR


MEMS LiDAR核心技術

2D SLAM LiDAR 產品特點

  • Design for AMR (Autonomous Mobile Robot) application 
  • MEMS LiDAR, No moving part
  • Worldwide NO. 1, Highest sampling rate
  • Outstanding angular resolution
  • 270°horizontal FOV
  • Detection range from 0.1 to 20m
  • compact form factor

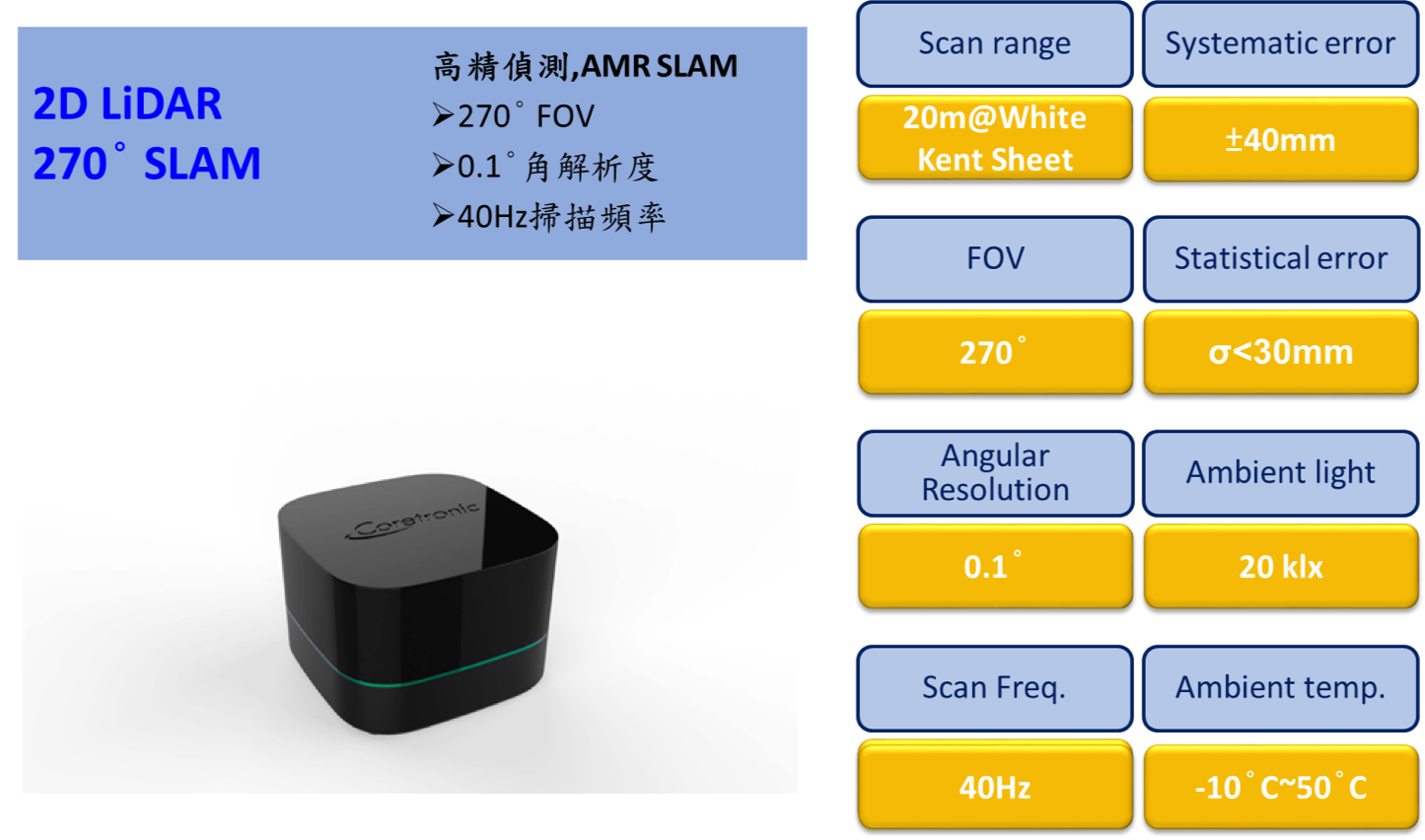

2D SLAM LiDAR 產品細部規格

  • Detection Range : 0.1 to 20m 
  • Accuracy : ±40mm
  • FOV : 270°
  • Angular Resolution : 0.1°
  • Frame rate : 40Hz
  • Storage temperature : -10°C~50°C
  • Ambient light : 20,000Lux
  • Enclosure rating : IP65
  • Dimension : 90X90X70mm

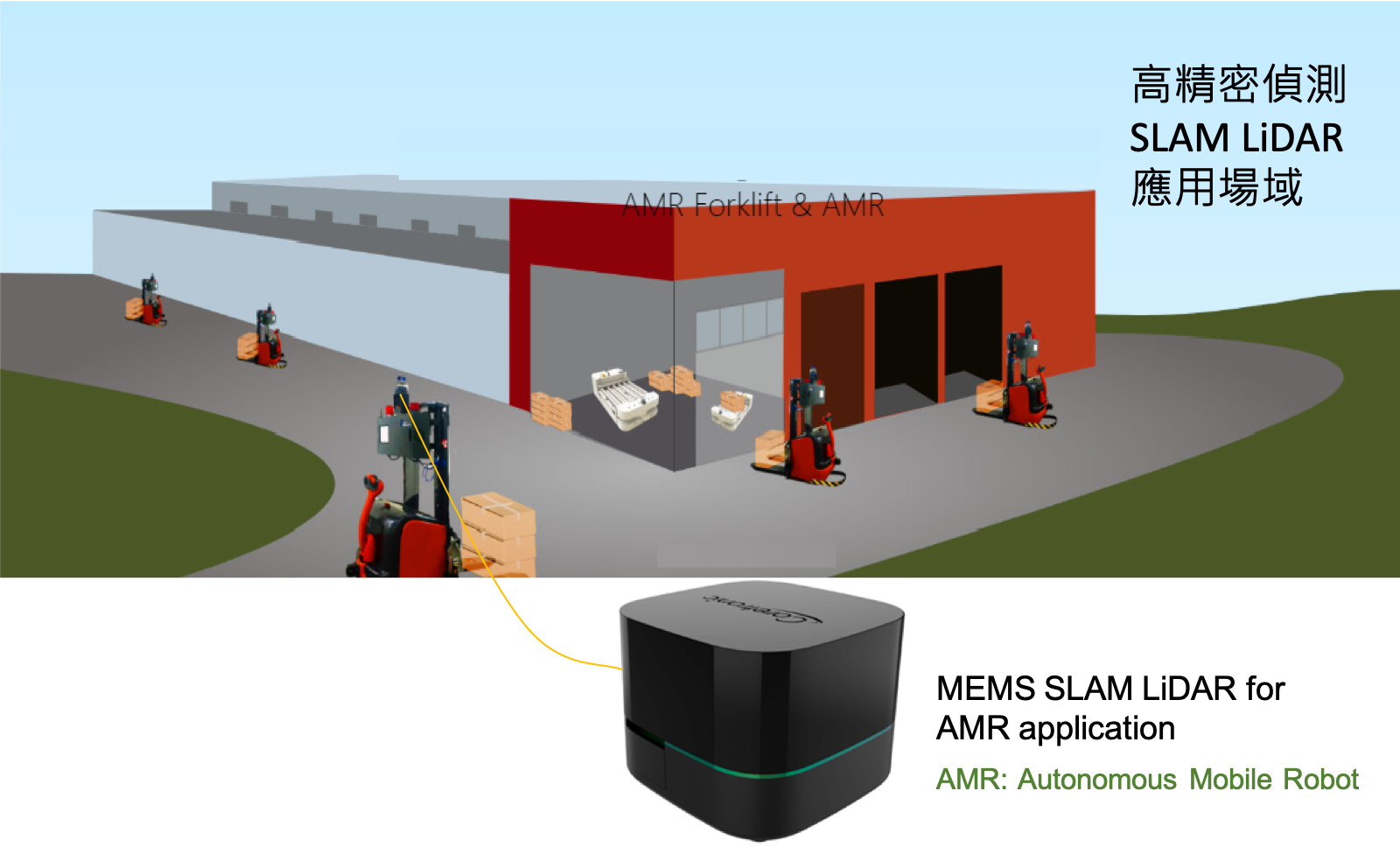

SLAM LiDAR 產品實測與應用
